ES7470 MFP

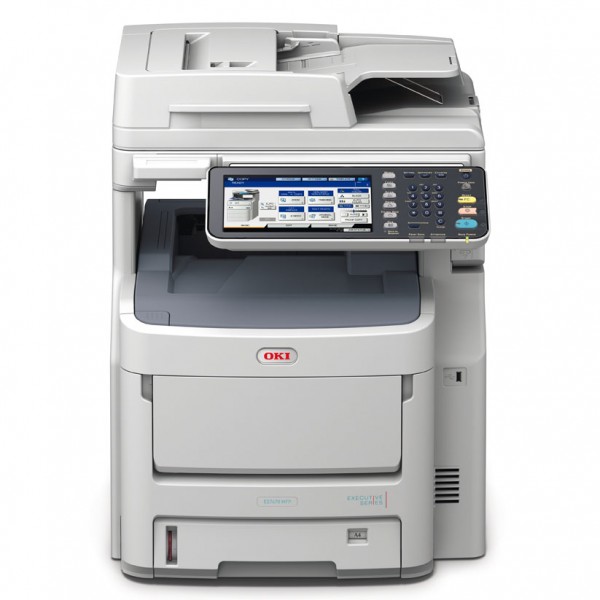

OKI ES7470 MFP

คุณสมบัติ

Printer

  • Print SpeedA4: 34ppm colour, 36ppm mono
  • Time to first print (TTFP)9 seconds colour, 8 seconds mono
  • Warm up time60 seconds or less from power on, 35 seconds or less from power save
  • Processor speed1.3GHz

Print quality

  • ResolutionProQ2400 Multi-level technology, 1200 x 600dpi

Typefaces

  • Printer fontsScalable: 80 PCL fonts & 138 PostScript fonts, PCL Bitmap fonts, OCR-A/B, USPS ZIP Barcode

Scan

  • Scan ResolutionUp to 600 x 600dpi
  • Scan SpeedUp to 40ipm (Colour/Mono)
  • Colour depthOutput 24 bit (8 bit x 3 RGB)
  • Document inputUp to 100 sheet Reverse-Automatic Document Feeder (RADF)
  • Contrast9 levels
  • FormatJPEG, TIFF (multi/single page), PDF (multi/single page), Slim PDF, Secure PDF, XPS (multi/single page)
  • AddressbookLDAP and internal address book
  • Scan toSMB, FTP, FTPS, Netware, FilingBox, USB Memory, E-mail

Copy

  • First copy out time (FCOT)13 seconds colour, 13 seconds mono
  • Copy speed34ppm colour, 36ppm mono
  • Copy resolution600dpi
  • Reduction/Enlargement25-400%
  • Maximum copies999

Fax (Optional)

  • ConnectivityRJ11 x 2 (Line/Tel), PSTN, PBX Line
  • SpeedITU-T G3(Super G3) up to 33.6kbps, 3 seconds/page
  • Internet faxingITU-T T.37
  • Fast dialingAddress book up to 1000 numbers
  • GroupsUp to 200
  • BroadcastMaximum 400
  • Page memory100 jobs, 1000 pages/job, and up to 1GB on HDD

Interface and Software

  • Connectivity10/100/1000 baseT, USB 2.0/ Hi Speed USB, Optional Wireless (802.11 b/g)
  • Embedded Open PlatformsXP (smart Extendable Platform)
  • Printer languagePCL5c, PCL5e, PCL6, Postscript 3 Emulation
  • Network & protocolsAll major network protocols supported via ethernet card with internal web server for printer and network card set-up and management. TCP/IPv4&v6, SMTP, POP3, HTTP, SNMPv1&v3, DHCP, DNS, LPR, Port9100, ARP, FTP, SMB, LDAP, Bonjour, NetWare, EtherTalk, LLTD, Web Service for Devices
  • OS CompatibilityWindows 8 (32-bit & 64-bit) / Windows 7 (32-bit & 64-bit) / Vista SP1 & SP2 (32-bit & 64-bit) / XP SP2 or later / Server 2008 SP1 or later (32-bit & 64-bit) / Server 2003 SP2(32-bit & 64-bit)/ Server 2008 R2 (64-bit); Mac OS X 10.4/10.5/10.6/10.7/10.8; PPDs for Linux/Unix
  • UtilitiesFile Downloader, Address Book Viewer, Remote Scan Driver, e-Filing Backup/Restore, Print Job Accounting, Print Job Accounting Enterprise, PrintSuperVision.NET, Output Manager, Fleet Manager, Template Manager

Security

  • Device securityIP Filtering, MAC Filtering, IPSec (option), Secure Print, Secure Print job encryption (by secure HDD), SMTP server authentication, POP before SMTP authentication, SSL Security for SMTP Protocol, SNMPv3, SSL/TLS Encryption, Port Change, Storage Device Encryption, Secure Erase, Disable Host USB feature
  • Access securityLDAP authentication
  • CertificationCE Mark, Energy Star, GS Mark

Operator panel

  • User interface23cm Colour backlit LCD touch screen & key top; 28 Hard Keys, 6 LED’s
  • Key pad12 numeric, 6 main function buttons (Menu, Copy, Scan, Print, FilingBox, Fax), Power, Power save, Reset, Stop, Start Key, Setting, Interrupt, Counter Key, Authentication, Clear Key

Paper Handling

  • Paper capacityTray 1: 530 sheets of 80gsm; Multi-purpose tray: 100 sheets of 80gsm; RADF: 100 sheets of 80gsm
  • Paper capacity optional trayTray 2: 530 sheets of 80gsm; Tray 3: 530 sheets of 80gsm; Tray 4: 530 sheets of 80gsm; Large Capacity Feeder (LCF): 2,000 sheets of 80gsm
  • Maximum paper capacity3,160 sheets of 80gsm
  • FinishingConvenience stapler: Stapling – up to 20 sheets of 80gsm; Internal finisher: Offset stacking, stapling – up to 50 sheets of 80gsm (dfn version)
  • Paper sizesTray 1: A4, A5, B5; Tray 2/3/4: A4, A5, B5; Large Capacity Feeder: A4; Multi-purpose tray: A4, B5, A5, A6. Envelopes (Com-9, Com10, DL, C5), Labels (Avery 7162, 7664, 7666). Support Custom size: Width 64-216mm Length 127-1321mm; RADF: A4, A5, A6(simplex), B5; Duplex: A4, A5, B5. Supports custom size: Width 148.5-216mm Length: 210-356mm
  • Paper weightTray 1: 64 to 220gsm; Tray 2/3/4: 64 to 220gsm; Large Capacity Feeder: 64 to 220gsm; Multi-purpose tray: 64 to 250gsm; RADF: 60 to 105gsm; Duplex: 64 to 220gsm
  • DuplexStandard
  • Paper outputFace up: 100 sheets of 80gsm, Face down: 500 sheets of 80gsm (dn version); Face up: 100 sheets of 80gsm, Face down: 100 sheets of 80gsm, Finisher: 500 sheets of 80gsm (dfn version)

General Features

  • Memory (RAM)2GB
  • Memory (Hard Disk Drive)160GB
  • Operating temperature/ humidity10°C to 32°C (17°C to 27°C recommended) / 20% to 80% RH (50% to 70% RH recommended)
  • Storage temperature/ humidity-10°C to 43°C / 10% to 90% RH
  • Power supplySingle phase 220–240VAC, frequency 50/60Hz +/- 2%
  • Power consumptionTypical: 800W; Max: 1500W; Idle: 130W; Power Save: 60W; Deep Sleep: 2W or less
  • Noise levelOperating: 57dB(A) or less; Standby: 37dB(A) or less; Power save: Background level
  • Dimensions (HxWxD)675 x 522 x 604mm (dn version); 811 x 522 x 604mm (dfn version)
  • Weight50kg approx (dn version); 60kg approx (dfn version)
  • Warranty1 year
  • Note*Fax is optional engineer install
หมวดหมู่: ,

รายละเอียดสินค้า

The A4 colour MFP designed to integrate seamlessly into your document workflow
  • A4 colour 4-in-1* MFP, 1-20 users
  • 36ppm mono and 34ppm colour print speed
  • 630 sheet standard paper capacity (up to 3,160 sheets)
  • Embedded open platform sXP (smart Extendable Platform)
  • Built-in convenience stapler
  • Internal finisher (dfn version)
The ES7470 MFP A4 colour/mono multifunction product offers the tools you need to ensure the cost effective use of resources within your organisation, improving communication and document workflow using the embedded open platform sXP (smart Extendable Platform). Combining print, copy, scan and fax* functionality in one high speed, ergonomic device, the smart ES7470 MFP offers efficient and secure document management and output. Ultimate flexibility  The ES7470 MFP provides the configuration flexibility required to meet your current and future business needs.
  • 3rd party software connectivity for seamless network integration
  • Customisable 23cm backlit colour LCD touch screen
Improving business productivity  Robust and efficient, the ES7470 MFP has been designed to deliver an extensive range of high value features as standard to improve productivity.
  • Up to 34ppm print speed in colour and 36ppm in mono
  • Paper capacity of up to 3,160 sheets
  • Built-in convenience stapler
  • Internal finisher for collating and stapling (dfn version)
Highest level document and data security The ES7470 MFP provides sophisticated user authentication that prevents unauthorised access and protects your corporate data.
  • Secure Print job encryption
  • SNMPv3 and optional IPSec secure networking
  • PIN/IC Card/LDAP/Kerberos access control
  • Secure Print with PIN or with optional card reader (MIFARE /HID)
Reducing your impact on the environment  The ES7470 MFP is the first full LED A4 medium to large workgroup MFP on the market.
  • Duplex print, copy and scan for reduced paper usage
  • Toner save function
  • 2W or less in Deep Sleep mode
High definition LED scanning and copying
  • Fast scan speeds of up to 40ipm
  • Duplex scanning
  • Scan to filing box, scan to shared folder, scan to email, scan to USB memory
  • Blank page skipping
  • Fast copy speeds of up to 36ppm (mono)
  • ID Card copy, repeat copy, job build copy
  • Duplex copying (1 to 2, 2 to 1, 2 to 2)
  • Job Macro stores frequent tasks
*Fax is optional engineer install
